SQL to Query Builder Converter ​

Convert supported SQL statements into a starting point for CakePHP Query Builder code. Review the result before using it in an application; complex expressions and database-specific behavior can require manual changes.

Quick Start ​

Navigate to /test-helper/query-builder in your browser to access the converter.

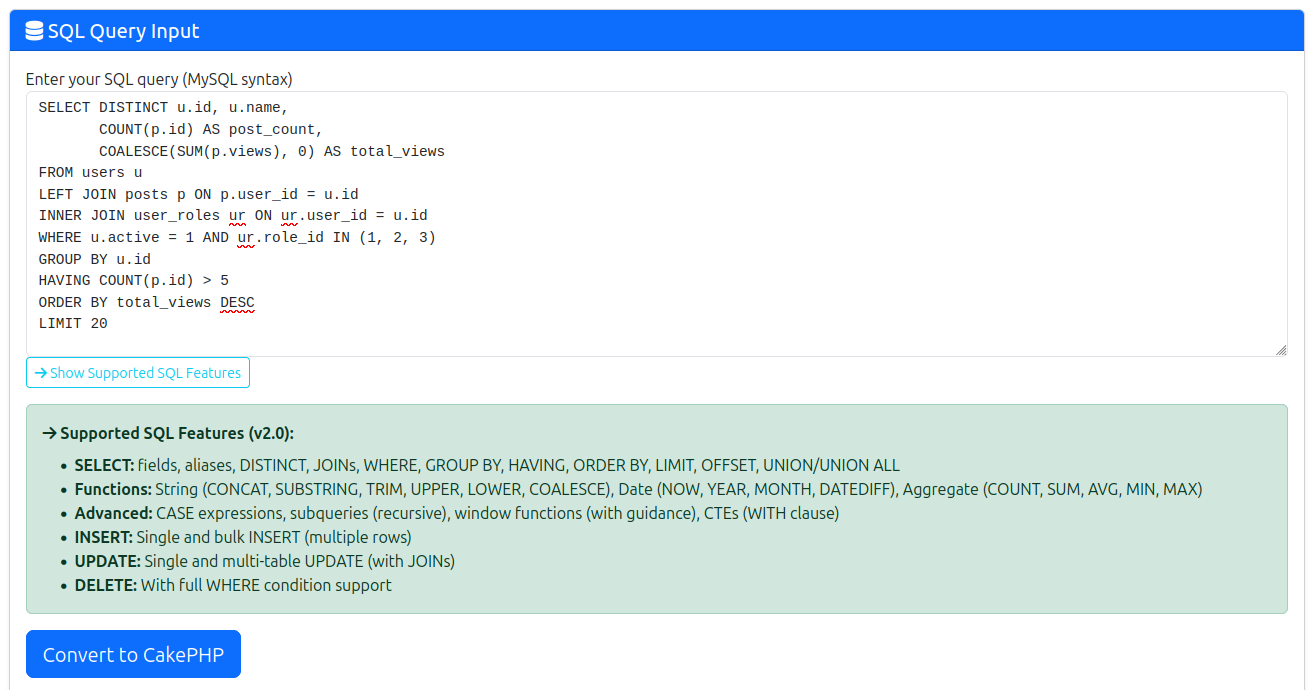

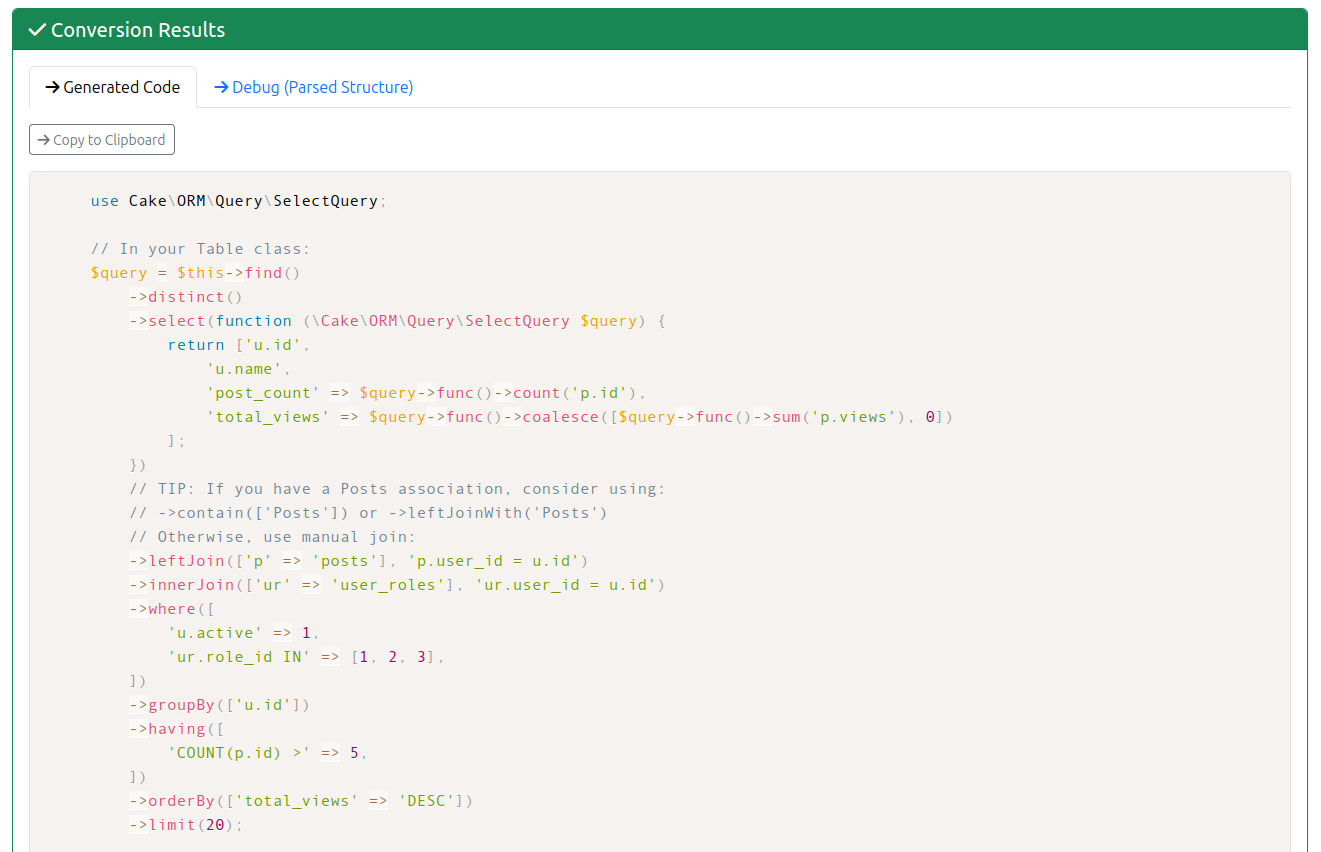

SQL converter input formGenerated Query Builder output

Paste SQL on the left, get Query Builder code on the right:

sql
SELECT id, title FROM articles
WHERE published = 1
ORDER BY created DESC
LIMIT 10;
php
$query = $articles->find()
    ->select(['id', 'title'])
    ->where(['published' => 1])
    ->orderBy(['created' => 'DESC'])
    ->limit(10);

Features ​

Supported Query Types ​

  • SELECT - Supported clauses include selection, joins, conditions, ordering, grouping, and limits
  • INSERT - Single and bulk (multiple rows)
  • UPDATE - Single and multi-table with JOINs
  • DELETE - With complex WHERE conditions

SQL Functions ​

String Functions ​

  • CONCAT() → $query->func()->concat([])
  • SUBSTRING() / SUBSTR() → $query->func()->substring([])
  • TRIM(), LTRIM(), RTRIM() → $query->func()->trim()
  • UPPER() / LOWER() → $query->func()->upper() / lower()
  • COALESCE() → $query->func()->coalesce([])
  • LENGTH() → $query->func()->length()
  • REPLACE() → Guidance provided

Date Functions ​

  • NOW(), CURDATE(), CURTIME() → now(), curdate(), curtime() respectively
  • YEAR(), MONTH(), DAY() → $query->func()->year() etc.
  • DATEDIFF() → $query->func()->dateDiff([])
  • DATE_FORMAT() → MySQL-specific SQL function call; review format compatibility before using another driver
  • DATE_ADD(), DATE_SUB() → Guidance provided

Aggregate Functions ​

  • COUNT(), SUM(), AVG(), MIN(), MAX() → $query->func()->
  • GROUP_CONCAT() → $query->func()->groupConcat()

Advanced Features ​

CASE Expressions ✅ ​

Converts SQL CASE/WHEN/THEN/ELSE to QueryExpression:

SQL:

sql
CASE
    WHEN status = 1 THEN 'Active'
    WHEN status = 2 THEN 'Pending'
    ELSE 'Inactive'
END AS status_label

Equivalent usage:

php
$query->select(['status_label' => $query->newExpr()->case()
    ->when(['status' => 1])
    ->then('Active')
    ->when(['status' => 2])
    ->then('Pending')
    ->else('Inactive')]);

Subqueries ✅ ​

Recursively parses and generates subquery code:

SQL:

sql
SELECT * FROM users
WHERE id IN (SELECT user_id FROM active_sessions)

Equivalent usage:

php
$subquery1 = $this->find()
    ->select(['user_id'])
    ->from('active_sessions');

$query = $this->find()
    ->where(['id IN' => $subquery1]);

Window Functions ​

Detects and provides guidance (limited CakePHP 5.x support):

  • ROW_NUMBER() OVER (...)
  • RANK(), DENSE_RANK()
  • PARTITION BY, ORDER BY
  • LAG(), LEAD(), FIRST_VALUE(), LAST_VALUE()

CTEs (Common Table Expressions) ​

Parses WITH clauses and suggests alternatives:

  • Subquery alternatives
  • Raw SQL option
  • Separate query approach

Complex JOINs ​

Handles all JOIN types with complex conditions:

  • INNER JOIN → ->innerJoin()
  • LEFT JOIN → ->leftJoin()
  • RIGHT JOIN → ->rightJoin()
  • Multiple JOINs with table aliases
  • Complex ON conditions with AND/OR

Example:

sql
LEFT JOIN posts AS p ON p.user_id = u.id AND p.status = 'published'

Generates:

php
$query->leftJoin(['p' => 'posts'], 'p.user_id = u.id AND p.status = \'published\'');

Multi-table UPDATE ​

Detects UPDATE queries with JOINs and provides a transaction template. Define nonempty conditions for each table in $conditionsByTable before running it; the converter does not translate JOIN conditions into separate update filters automatically. Missing conditions stop the template before it writes rows.

SQL:

sql
UPDATE users u
JOIN profiles p ON p.user_id = u.id
SET u.last_login = NOW(), p.updated = NOW()
WHERE u.id = 5

Equivalent usage:

php
$this->getConnection()->transactional(function () use ($userChanges, $userConditions, $profileChanges, $profileConditions) {
    $users = \Cake\ORM\TableRegistry::getTableLocator()->get('Users');
    $profiles = \Cake\ORM\TableRegistry::getTableLocator()->get('Profiles');
    $users->updateAll($userChanges, $userConditions);
    $profiles->updateAll($profileChanges, $profileConditions);
});

User Interface ​

Syntax Highlighting ​

  • SQL Input - Color-coded SQL syntax with Prism.js
  • PHP Output - Highlighted CakePHP code with line numbers
  • Examples - All examples syntax highlighted

Tabbed Interface ​

Results Tabs:

  1. Generated Code - The converted CakePHP code
  2. Debug (Parsed Structure) - Internal parser output for troubleshooting

Example Tabs:

  1. SELECT - 8 examples from simple to complex
  2. INSERT - 3 examples including bulk
  3. UPDATE - 4 examples including CASE and multi-table
  4. DELETE - 3 examples with complex WHERE
  5. Advanced - 4 examples (window functions, CTEs, nested subqueries)

Interactive Examples ​

Each example includes:

  • SQL code with syntax highlighting
  • "Try It" button - Loads SQL into the converter
  • Collapsible sections for cleaner UI

Common Patterns ​

Converting Existing SQL ​

  1. Copy your SQL query from your application
  2. Paste into the SQL textarea
  3. Click "Convert to CakePHP"
  4. Review the generated code
  5. Copy to clipboard and paste into your Table class

Learning Query Builder ​

  1. Browse the tabbed examples
  2. Click "Try It" on an example similar to your use case
  3. See how SQL patterns translate to CakePHP
  4. Modify the SQL and re-convert to experiment

Migrating Legacy Code ​

  1. Find raw SQL queries in your legacy application
  2. Convert them one-by-one using the tool
  3. Review generated conditions, bindings, and query types
  4. Test in your application
  5. Refactor further as needed

Reviewing generated code ​

When to Use Generated Code ​

✅ Good for:

  • Quick prototyping
  • Learning Query Builder syntax
  • Converting legacy SQL
  • Understanding complex query patterns
  • Starting point for refactoring

⚠️ Review needed:

  • Multi-table queries (consider associations)
  • Complex expressions (test thoroughly)
  • Performance-critical queries (may need optimization)

Association-Based Alternatives ​

The generator suggests association alternatives when appropriate:

php
// Manual join (generated)
$query->leftJoin(['Posts' => 'posts'], 'posts.user_id = users.id');

// TIP: If you have a Posts association, consider using:
// ->contain(['Posts']) or ->leftJoinWith('Posts')

ORM Alias Handling ​

The converter automatically normalizes table aliases:

SQL:

sql
SELECT authors.id AS Authors__id, authors.name
FROM authors AS Authors

Equivalent usage (simplified):

php
$query->select(['Authors.id', 'Authors.name']);
// TIP: ORM-style aliases detected. Consider using:
// ->contain() or ->leftJoinWith() for automatic aliasing

Limitations ​

Database-Specific Features ​

  • Focus: MySQL syntax
  • PostgreSQL: selected dialect-specific functions are handled; review generated code against the target driver
  • SQLite: no dedicated dialect setting

Not Supported ​

  • Multi-table DELETE (CakePHP limitation)
  • Some vendor-specific functions
  • Very complex nested expressions (may need manual adjustment)
  • User-defined functions (UDFs)

Partial Support (with Guidance) ​

  • Window functions (limited CakePHP 5.x native support)
  • CTEs (suggests subquery alternatives)
  • Some date/time functions (provides guidance)

Troubleshooting ​

Empty Generated Code ​

  • Check SQL syntax is valid
  • Ensure query type is supported (SELECT, INSERT, UPDATE, DELETE)
  • Review error messages if any

Unexpected Output ​

  • Use the Debug tab to see parsed structure
  • Check for SQL syntax quirks (comments, special characters)
  • Try simplifying the query first

Complex Queries ​

  • Break into smaller parts
  • Convert step-by-step
  • Use Debug tab to understand parsing
  • Manually combine generated code

Examples ​

Example 1: Simple SELECT with Functions ​

SQL:

sql
SELECT
    CONCAT(first_name, ' ', last_name) AS full_name,
    UPPER(email) AS email_upper,
    YEAR(created) AS signup_year
FROM users
WHERE active = 1
ORDER BY created DESC
LIMIT 10

Equivalent usage:

php
$query = $this->find()
    ->select(function (\Cake\ORM\Query\SelectQuery $query) {
        return [
            'full_name' => $query->func()->concat([$query->identifier('first_name'), ' ', $query->identifier('last_name')]),
            'email_upper' => $query->func()->upper([$query->identifier('email')]),
            'signup_year' => $query->func()->year([$query->identifier('created')])
        ];
    })
    ->where(['active' => 1])
    ->orderBy(['created' => 'DESC'])
    ->limit(10);

Example 2: Complex JOIN with Aggregates ​

SQL:

sql
SELECT
    u.id,
    u.name,
    COUNT(p.id) AS post_count,
    COALESCE(SUM(p.views), 0) AS total_views
FROM users u
LEFT JOIN posts p ON p.user_id = u.id
WHERE u.active = 1
GROUP BY u.id
HAVING COUNT(p.id) > 5
ORDER BY total_views DESC

Equivalent usage:

php
$query = $this->find()
    ->from(['u' => 'users'], true)
    ->select(function (\Cake\ORM\Query\SelectQuery $query) {
        return [
            'u.id',
            'u.name',
            'post_count' => $query->func()->count('p.id'),
            'total_views' => $query->func()->coalesce([
                $query->func()->sum('p.views'),
                0
            ])
        ];
    })
    ->leftJoin(['p' => 'posts'], 'p.user_id = u.id')
    ->where(['u.active' => 1])
    ->groupBy(['u.id'])
    ->having(['COUNT(p.id) >' => 5])
    ->orderBy(['total_views' => 'DESC']);

Example 3: UNION Query ​

SQL:

sql
SELECT id, name, 'user' AS type FROM users WHERE active = 1
UNION
SELECT id, name, 'admin' AS type FROM admins WHERE active = 1
ORDER BY name

Equivalent usage:

php
$query1 = $this->find()
    ->select(['id', 'name', 'type' => '\'user\''])
    ->where(['active' => 1]);

$query2 = $this->find()
    ->select(['id', 'name', 'type' => '\'admin\''])
    ->from('admins')
    ->where(['active' => 1]);

$query = $query1->union($query2)
    ->orderBy(['name' => 'ASC']);

Advanced Topics ​

Nested Function Calls ​

Automatically handles nested functions:

sql
SELECT COALESCE(SUM(amount), 0) AS total

Generates:

php
$query->select(['total' => $query->func()->coalesce([
    $query->func()->sum('amount'),
    0
])]);

Multiline CASE Expressions ​

Properly handles CASE across multiple lines:

sql
SELECT
    CASE
        WHEN score >= 90 THEN 'A'
        WHEN score >= 80 THEN 'B'
        WHEN score >= 70 THEN 'C'
        ELSE 'F'
    END AS grade
FROM students

Bulk INSERT ​

Generates both entity-based and query-based approaches:

sql
INSERT INTO users (username, email) VALUES
    ('alice', 'alice@example.com'),
    ('bob', 'bob@example.com')

Provides saveMany() and ->values() options.

Technical Details ​

Architecture ​

  • SqlParser - Parses raw SQL into structured arrays
  • QueryBuilderGenerator - Converts parsed structure to CakePHP code
  • ConditionParser - Handles complex WHERE/HAVING conditions

Regex Modifiers ​

  • Uses /s modifier for multiline expressions (CASE, etc.)
  • Uses /i for case-insensitive matching
  • Handles nested parentheses and quotes

Type Detection ​

Automatically detects field types:

  • column - Simple field reference
  • aggregate - COUNT, SUM, etc.
  • string_func - CONCAT, TRIM, etc.
  • date_func - NOW, YEAR, etc.
  • case - CASE expressions
  • math - Mathematical expressions
  • window_func - Window functions

Further Reading ​

Contributing ​

Found a bug or have a feature request? The SQL converter is actively maintained!

Key areas for contribution:

  • Database dialect support (PostgreSQL, SQLite)
  • Additional SQL functions
  • UI improvements
  • Test coverage for edge cases
